X2011 NMRA Clinics on using Aspect Signaling. (14,July '11)

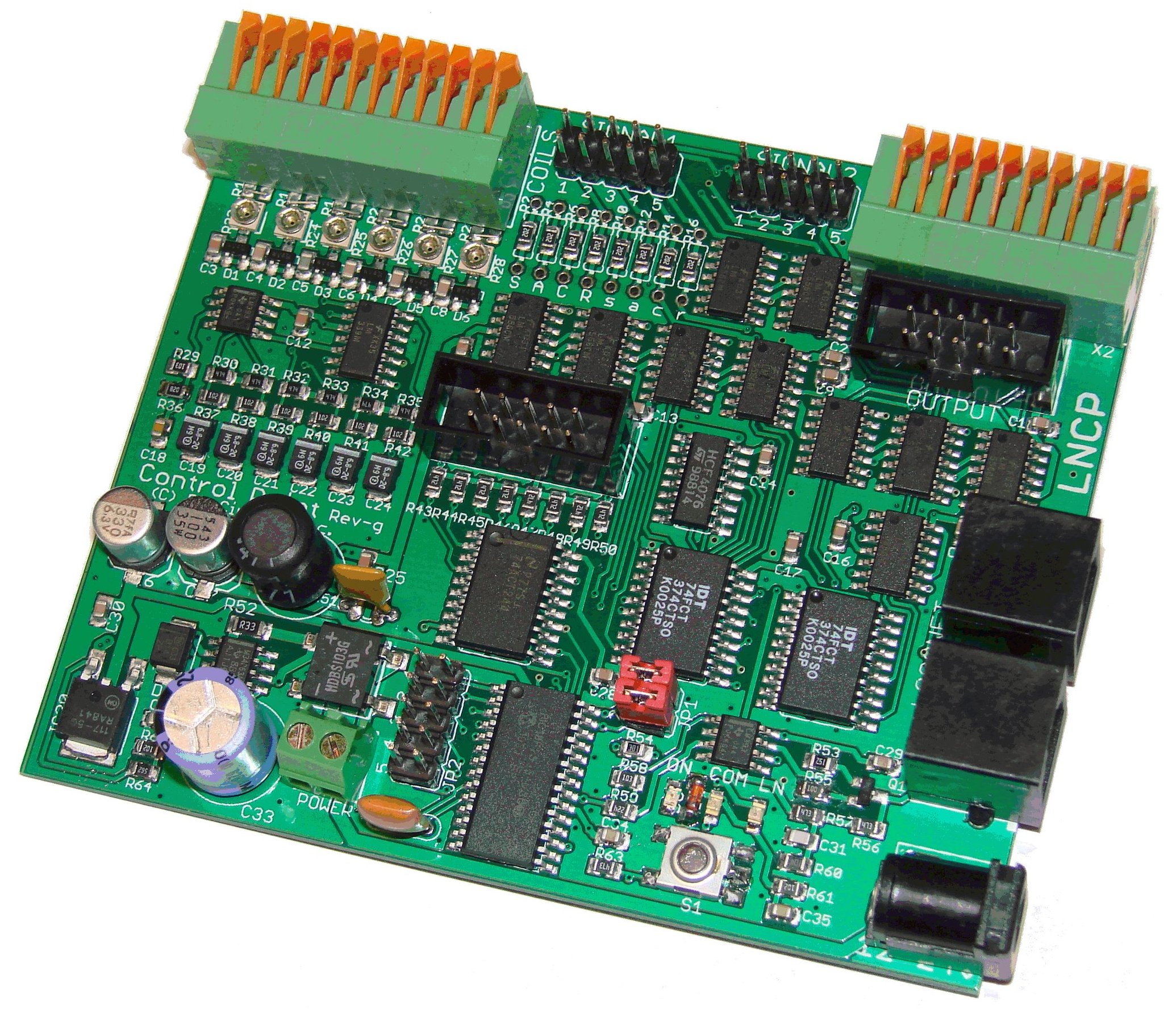

LNCP (LocoNet Control
Point) This single
board
includes all the inputs and outputs necessary to signal a complete
passing siding. The LNCP communicates over the LocoNet compatible serial
port with other LNCP units and operates with layout control software
such as JMRI and RR&Co. via the LocoBuffer-USB.
This single board includes all the necessary
electronics for a complete passing siding.
Includes:
• 6 Block Detectors. (CT coils extra as required)
• Drive for up to 32 signal LEDs. (signal heads
extra)
• 8 inputs for optional local contacts or turnout
position feedback.
• 8 outputs / low power drivers for 4 stall
motors. (switch machines not included)
• Internal Logic Blocks with up to 64
conditional statements.
• 14' LocoNet compatible cable and 4 IDC connectors
included.

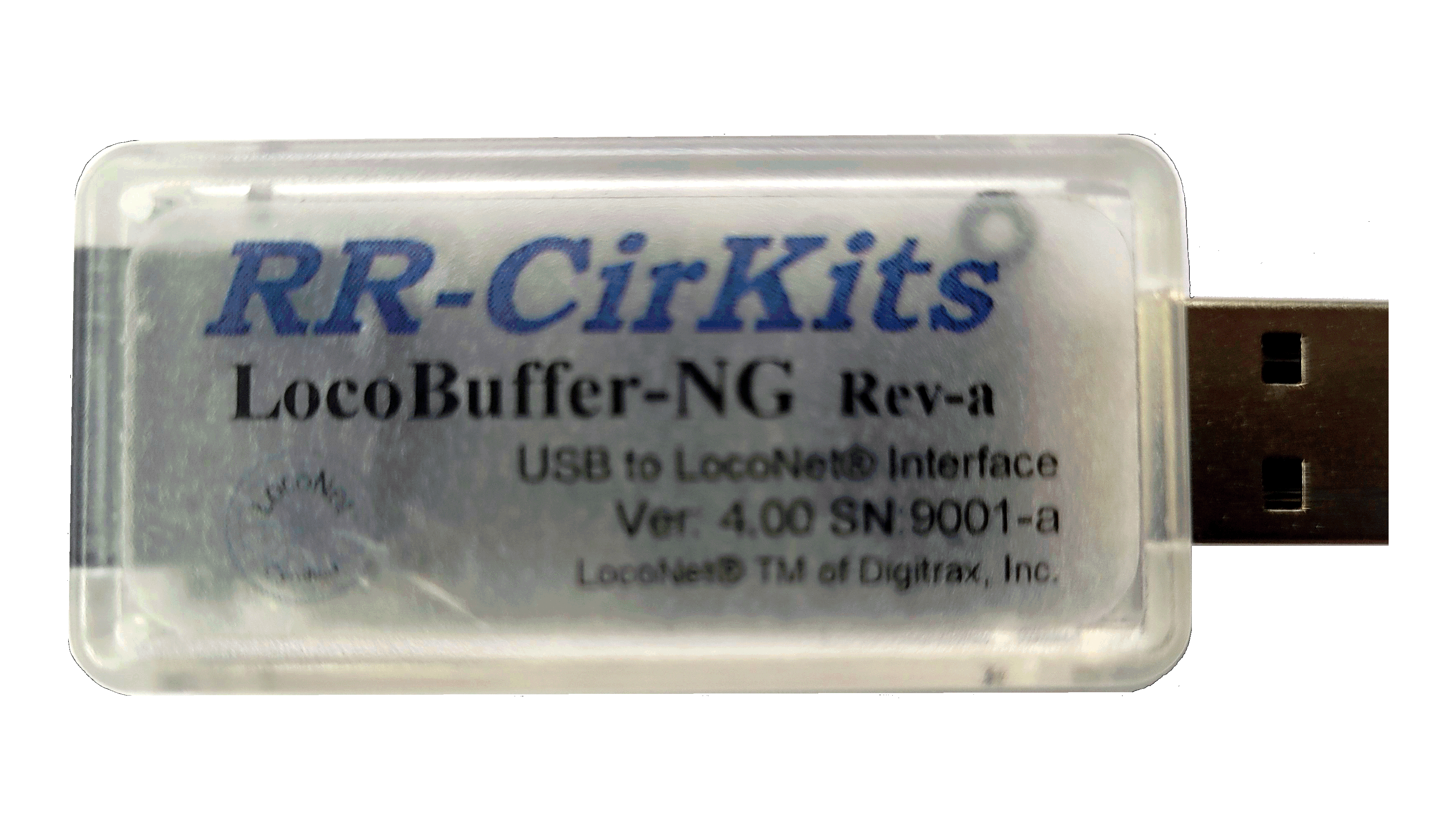

LocoBuffer-USB Optical
Isolation:
Your
best
investment
— Keep your system up and
running through ground loops, spikes, and surges.
Download all the latest LocoBuffer-USB drivers includes Windows
7.
LocoBuffer-USB Windows
7
FAQ.
Download the Schematics.
Download the latest
LocoBuffer-USB Manual.
LocoBuffer-USB driver Install
instructions for Windows Vista.
LocoBuffer-USB driver Install
instructions for Windows XP.
Linux Notice!
— The LocoBuffer-USB Linux driver is included in all recent distros.
Check out our new I/O board mounting hardware!
Tower Controller (TC-64) manual. (5 April, '10)
Tower
Controller Information TC-64 Rev-6F firmware shipping.
The Tower
Controller is a 64 line general purpose Layout to Digitrax LocoNet®
interface.
Mike Weber's
CTC panel (June 2, '06)
Tower Controller Basic Record Sheet
Tower
Controller
interconnection
diagram
